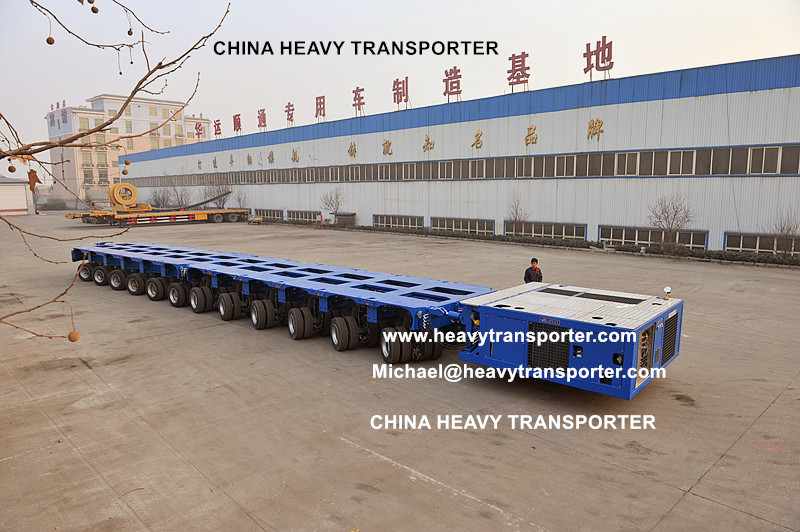

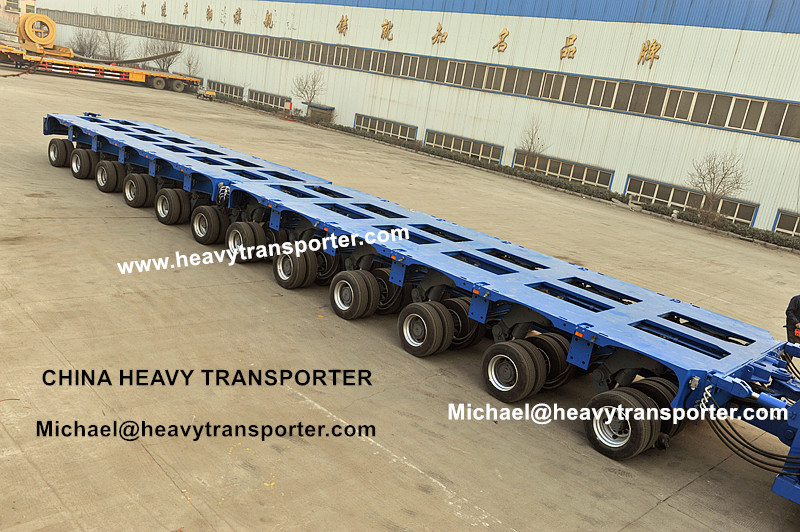

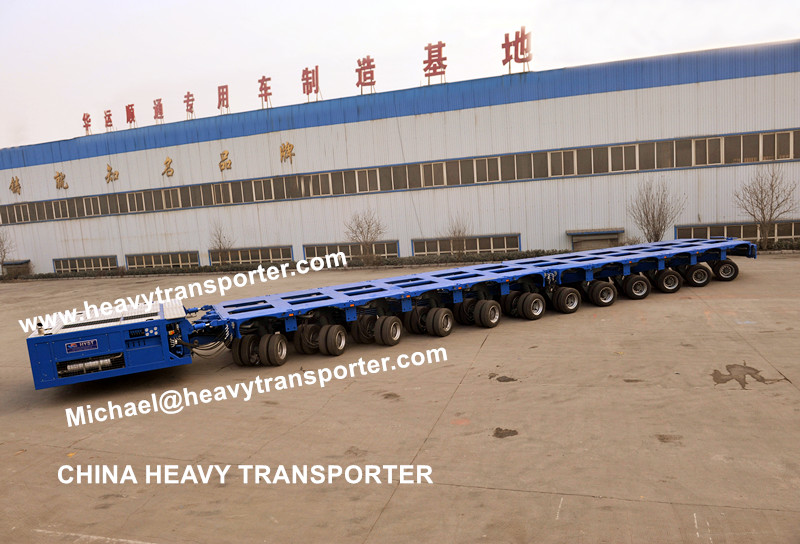

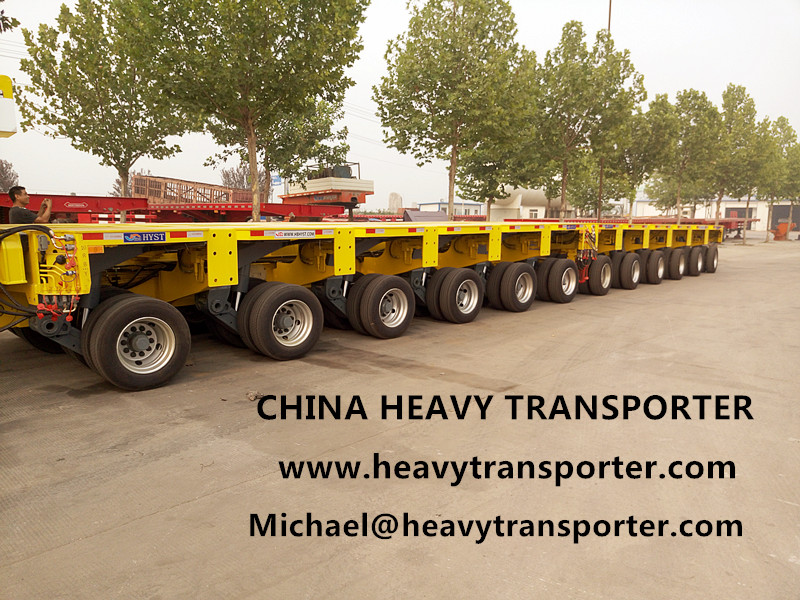

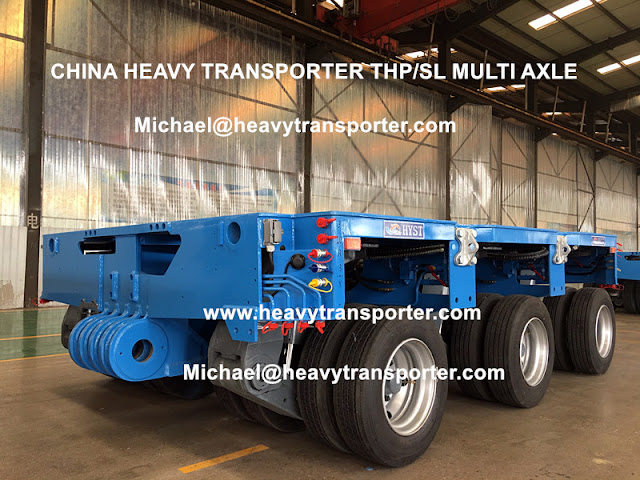

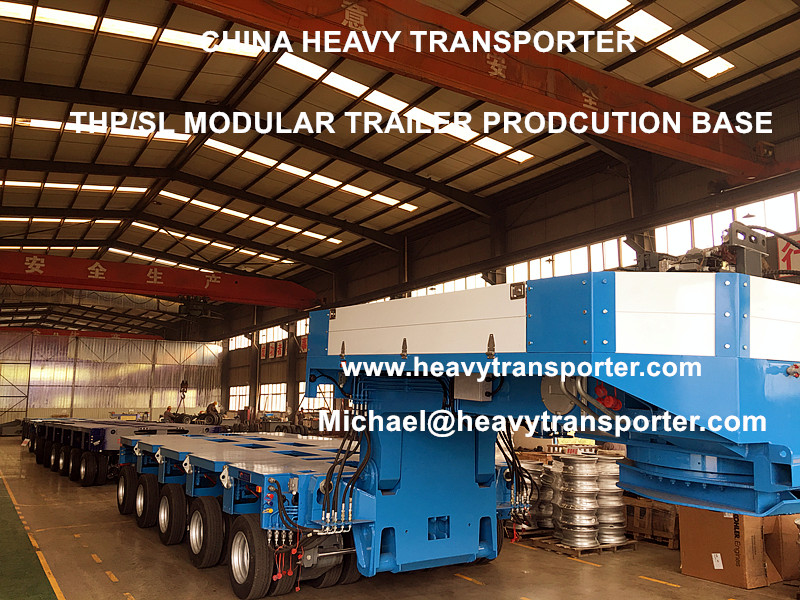

CHINA HEAVY TRANSPORTER

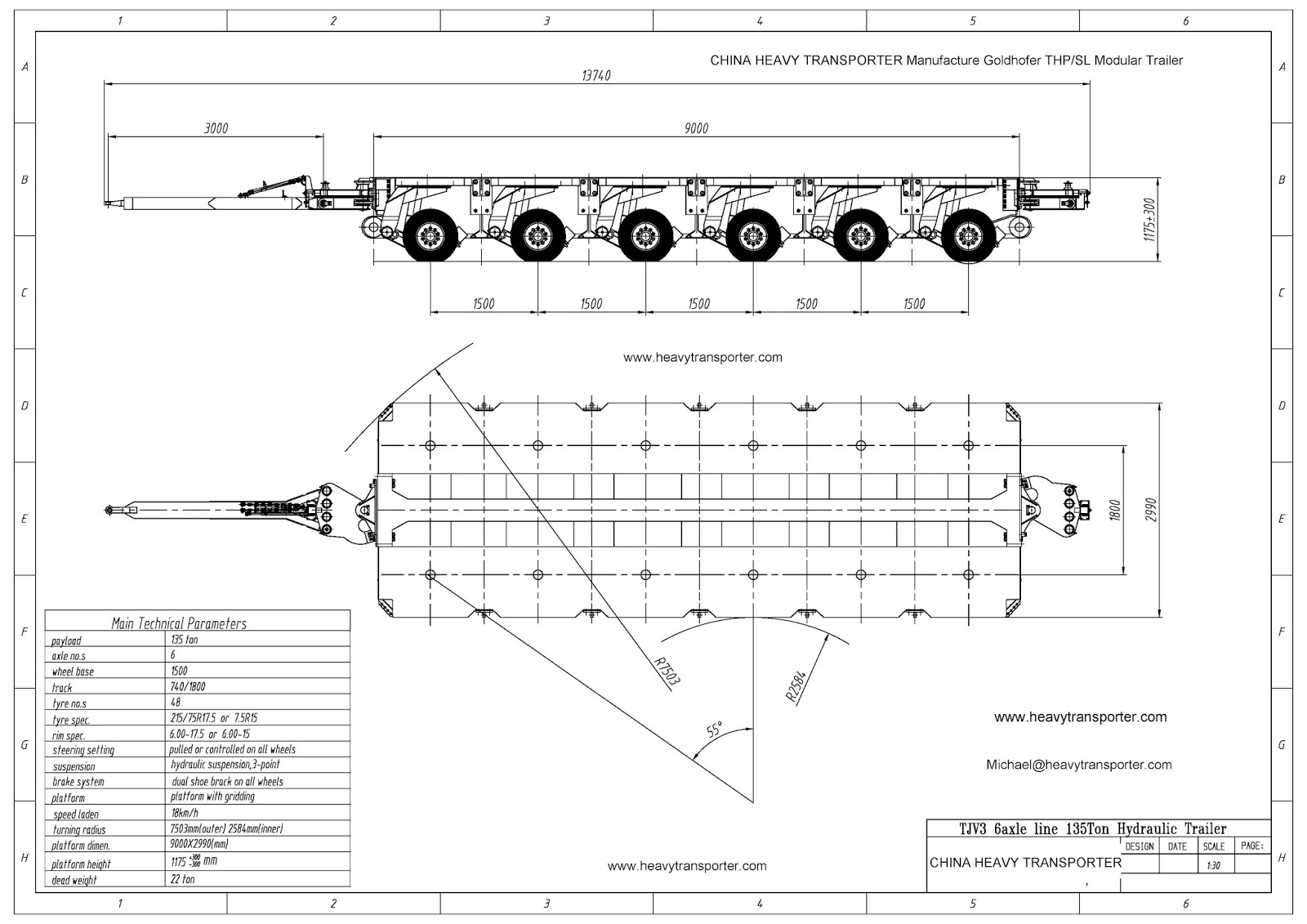

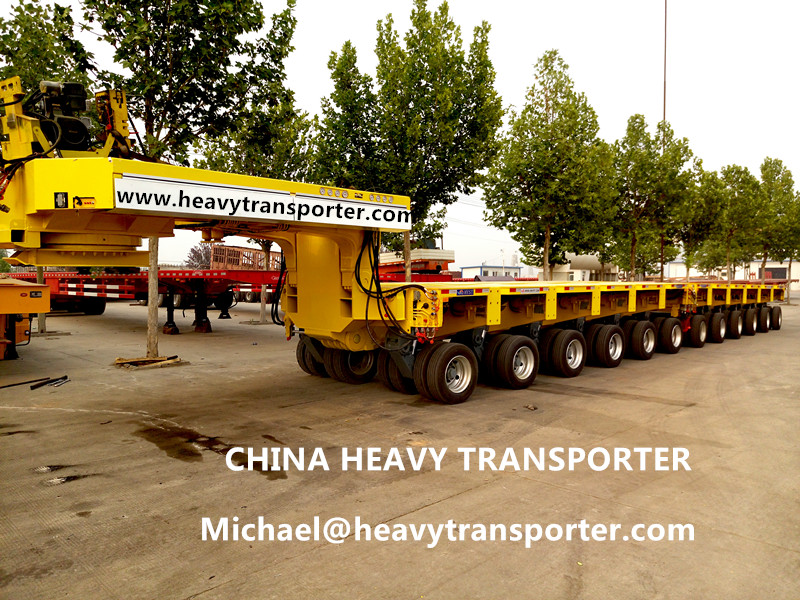

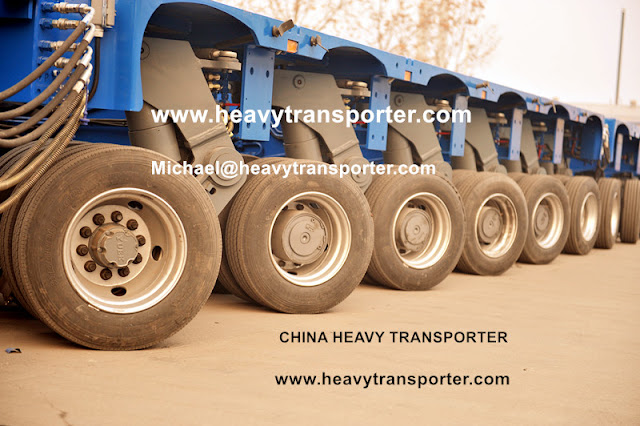

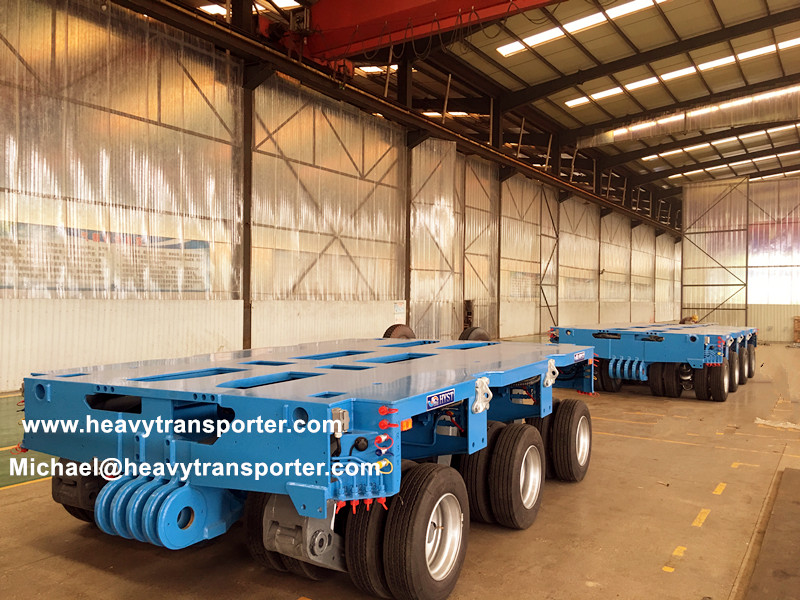

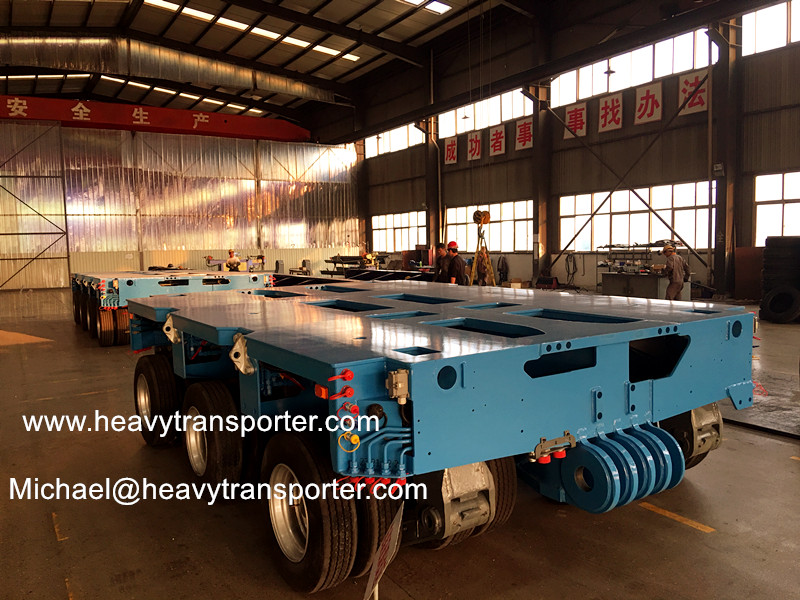

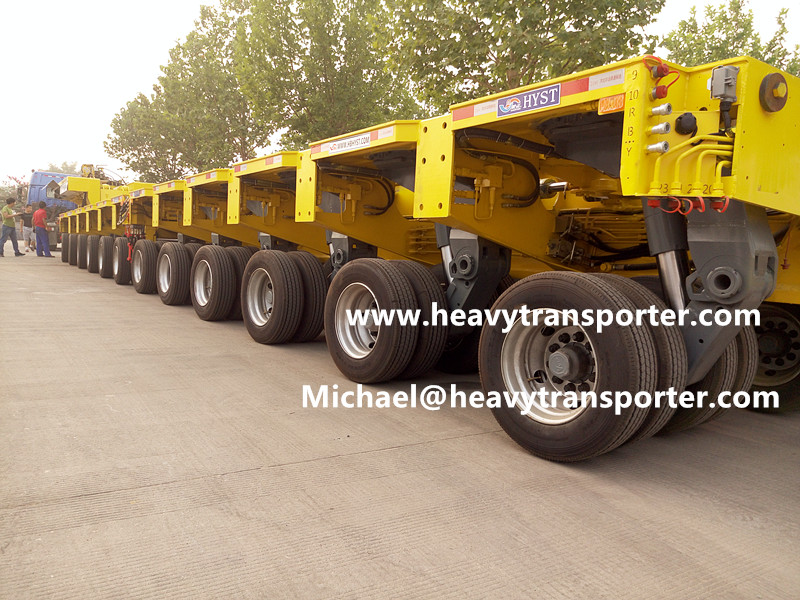

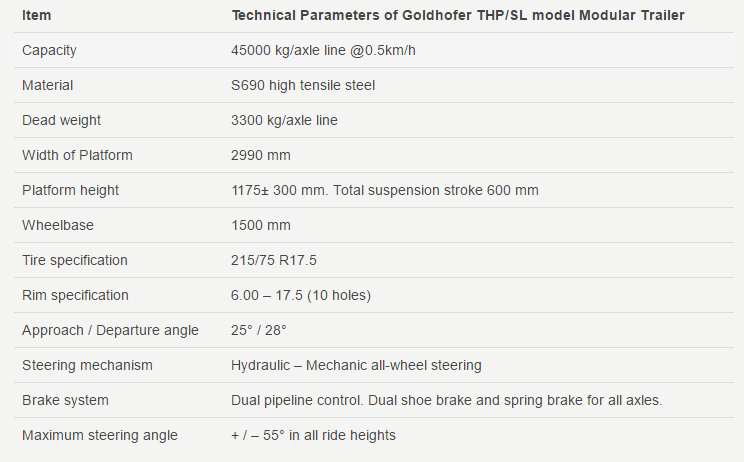

Specialized in Manufacture Hydraulic Modular Trailer/Multi Axle , can be Fully
Compatible with the original Germany Goldhofer THP/SL, capacity 45 tons/axle
line, 1,175 ± 300 mm height and 2,990 mm width, axle base 1,500 mm with S690
high tensile structure steel, robust and durable construction with high bending
moment, high concentrated load bearing capacity.
1)The frame is using special
thick Q690E(δs=690Mpa) steel plate, box-shaped structure, high strength, hard to
deform, good ability for concentrated Professional materials certificate of all
steel can be offered.

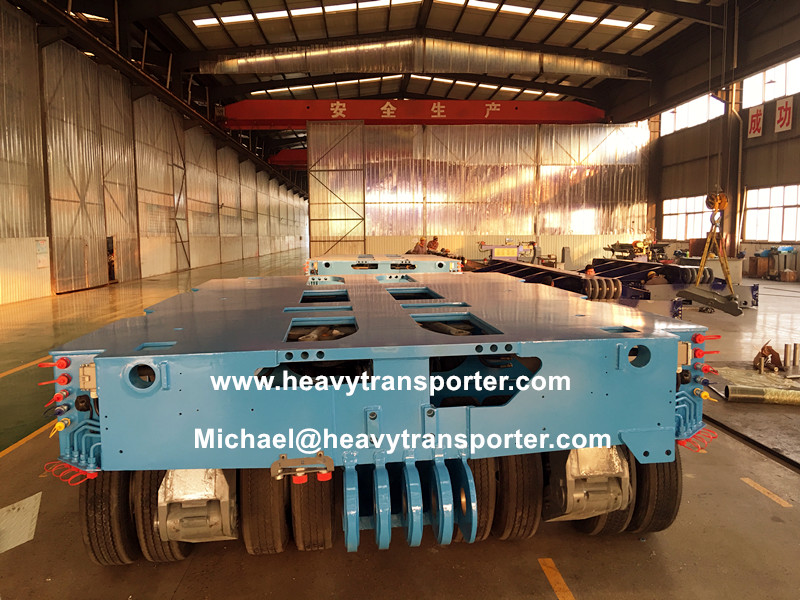

2). The combinations and
connections of modules adopts foreign general multiunit connect-sheets
connecting, high connection strength , not easy to break, convenient connection
and combination, largely increase the combination speed.

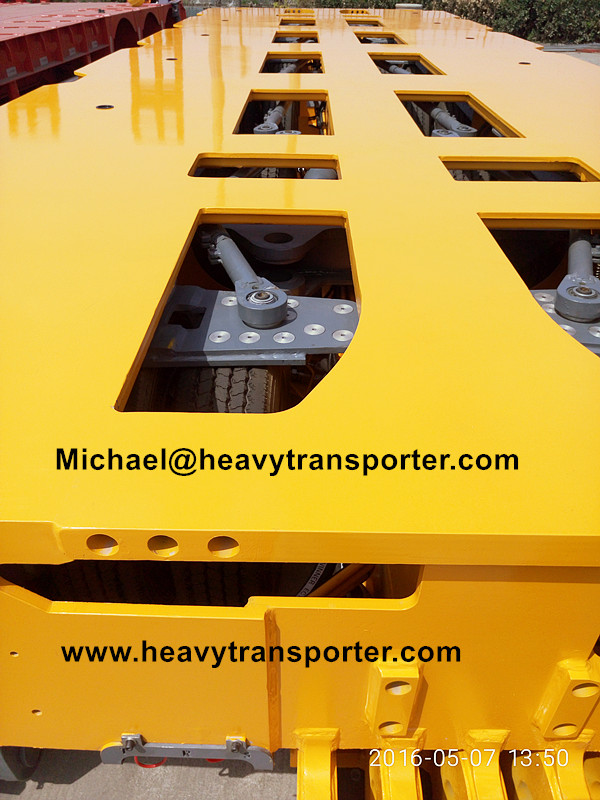

3). Suspension frame and
balance arm is welding structure,(same with Goldhofer) high strength and delight
appearance.
4). Steering.
a. Steering rod system was
optimized by computer, less steering error.
b. Steering pad adopts
multiple holes design, convenient for combination.

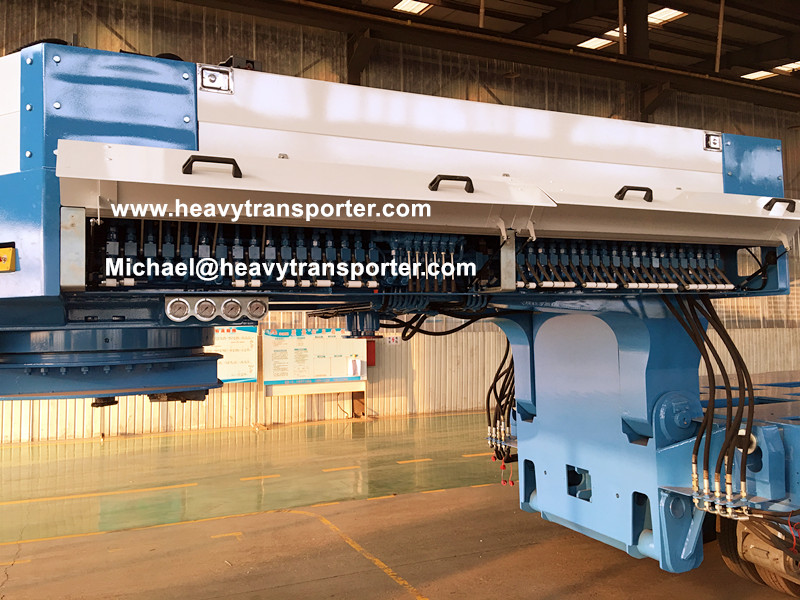

5). Hydraulic and air pips
adopt quick coupling connection, swift combination, the combination parts are
using automatic cylinder pins. Greatly reduce the labor intensity of
workers.
6).Hydraulic suspension oil
cylinder is manufactured via pull-cylinder techniques, high strength, cylinder
connection and seals form is same with Goldhofer, and seals parts are all using
overseas famous brand.
7). Hydraulic suspension oil
pipe line adopts dual-pipe system, ensure the safety of operation.
8). Maximum steering angle of
the first wheel is 55 degree.
it is suitable for heavy goods
transport and heavy-duty handling on site. A large number of accessories allow
to configurate all desired combinations, as well as semi-trailers. They can be

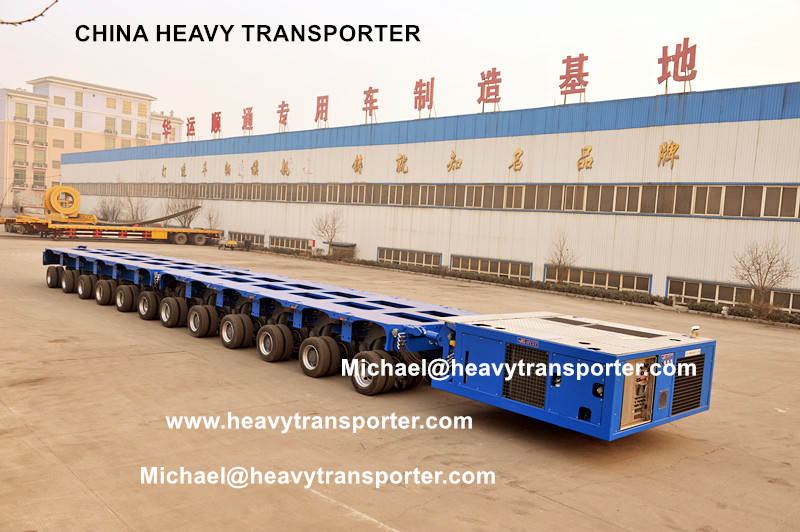

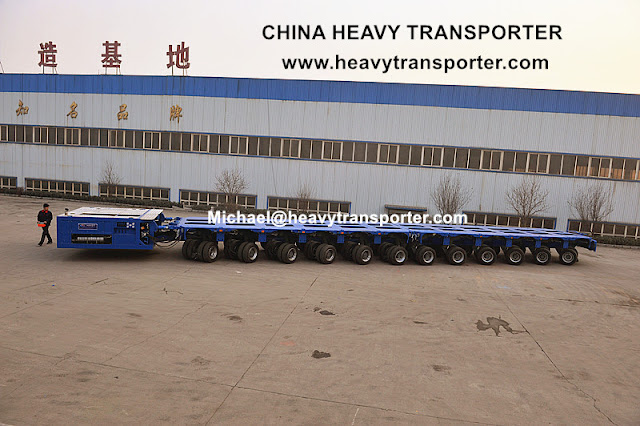

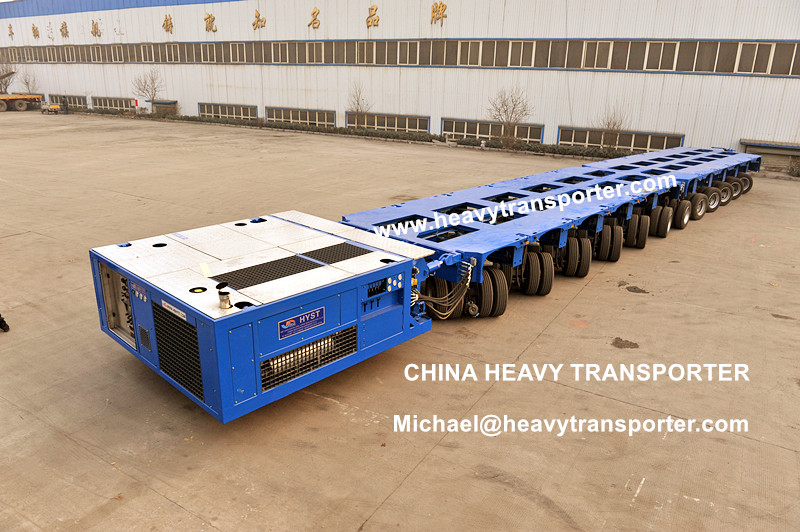

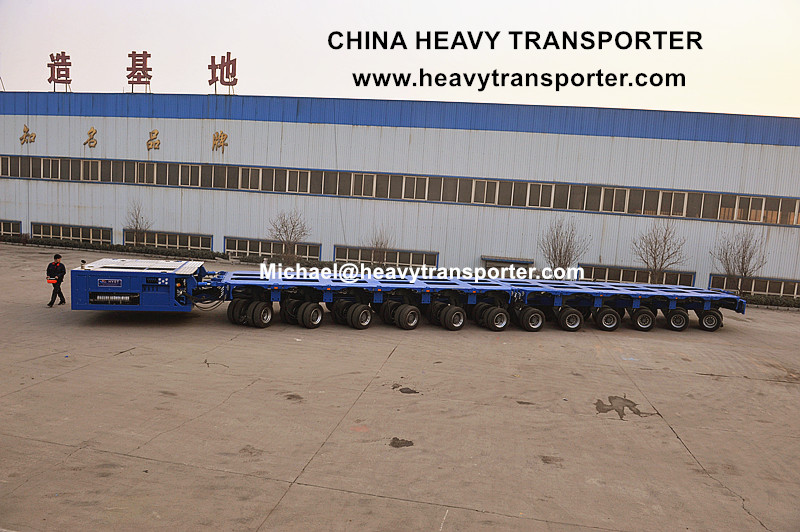

also coupled with driven modules and power pack unit, resulting in a
self-propelled combination for handling on site. Additional components
accessories such as Goosenecks, Drawbars, Spacer, Dropdeck, Girder Bridge, Load
bridges, Turn tables.ect

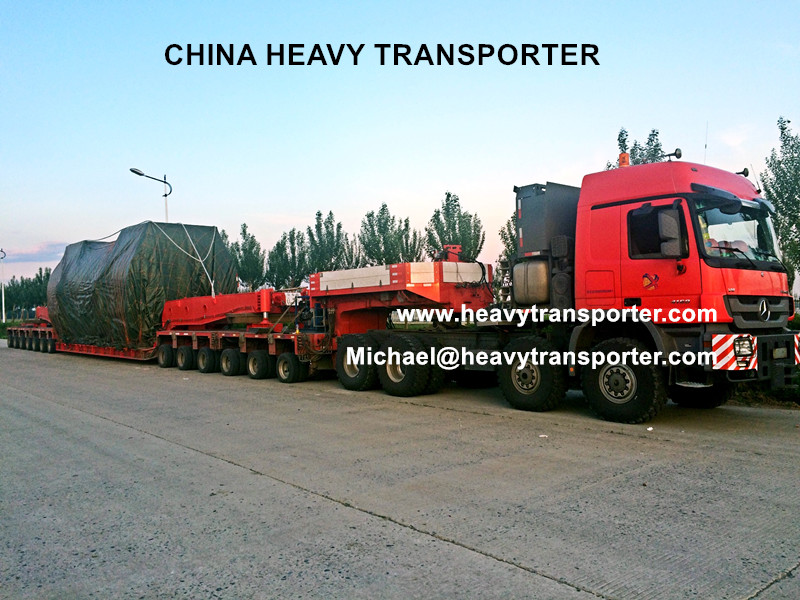

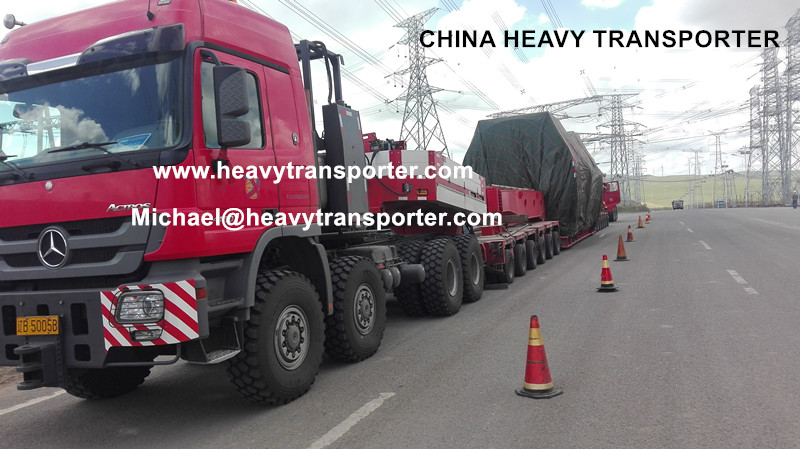

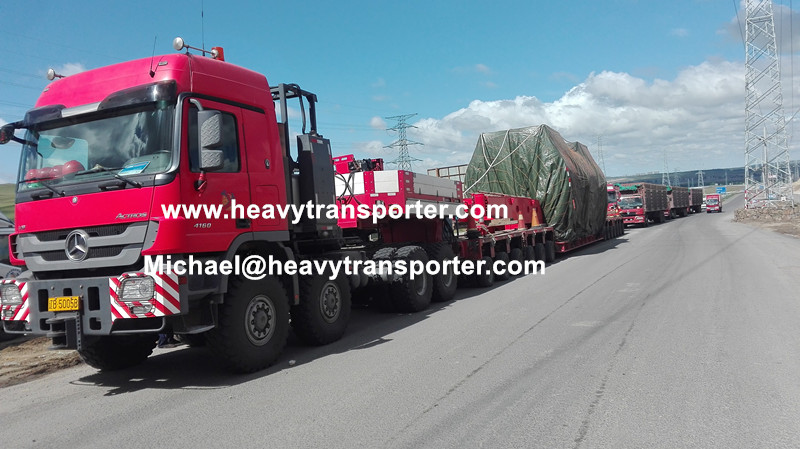

Last week our Hydraulic Modular Trailer 13 Axle Lines Used to Transport 350 Tons Generator

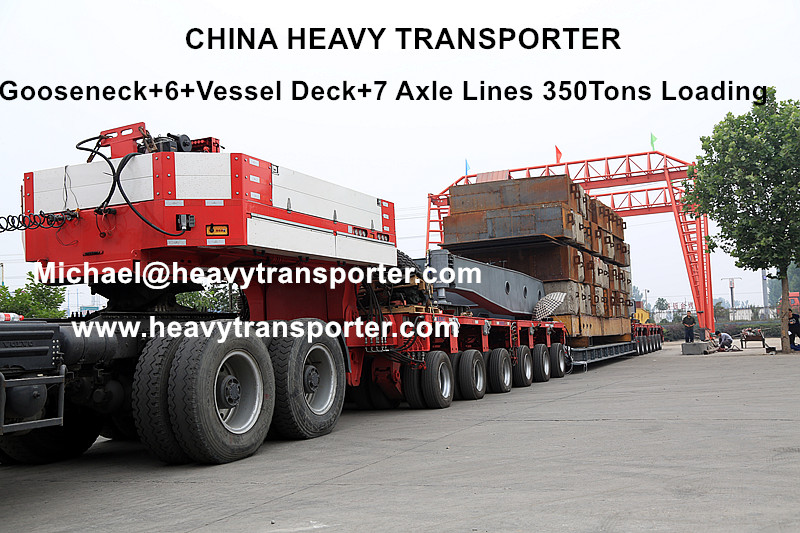

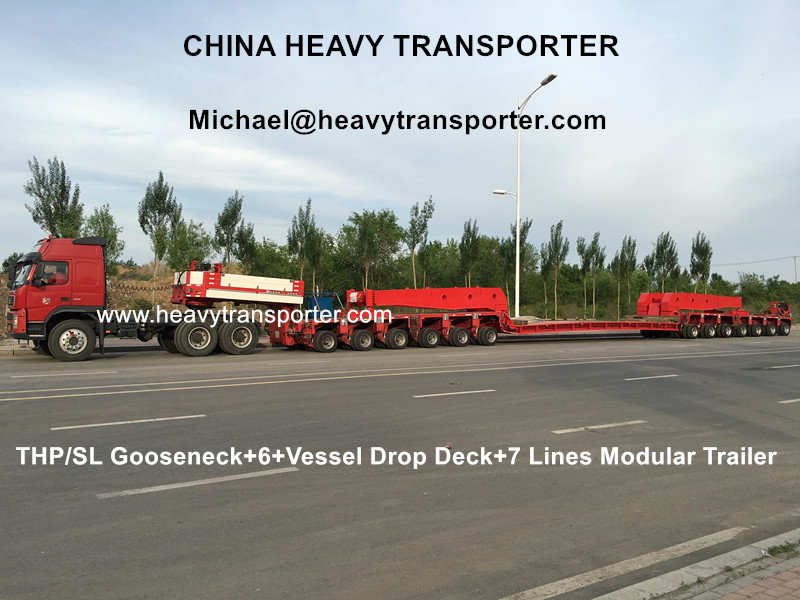

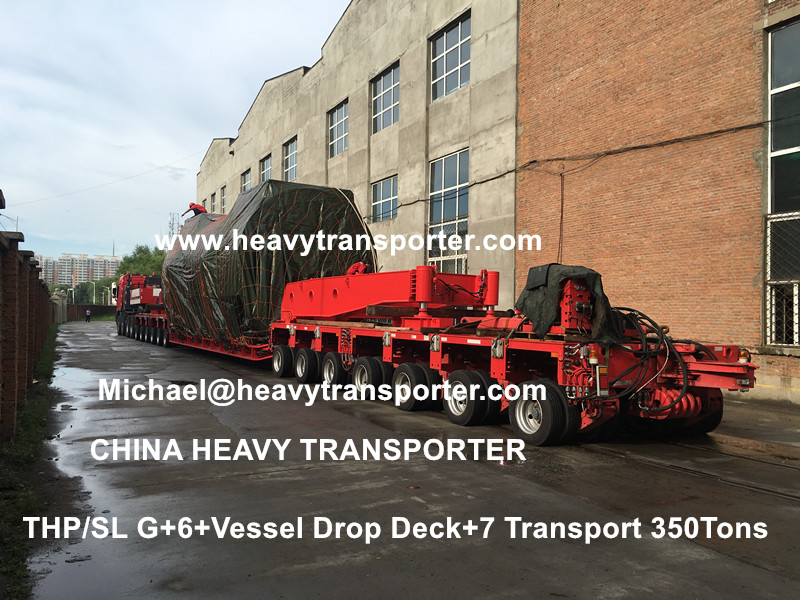

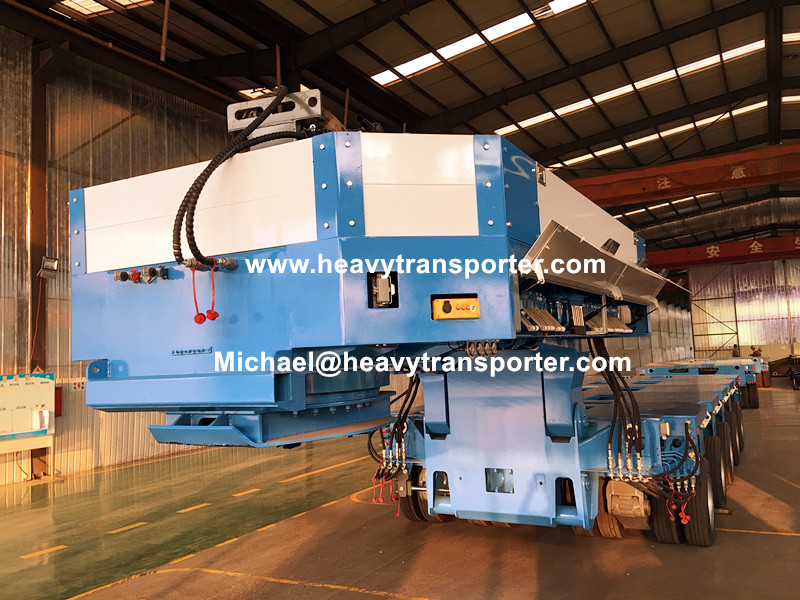

Hydraulic Gooseneck+6+Vessel Drop Deck+7 Axle Lines
This Vessel Drop Deck Capacity can be Max 350 Tons.
Driving on the Road, with 18km/h, total 150Kms.
First we do Heavy Loading Test in our factory before delivery to our Customers.
Each Stone is 6 Tons and we do 350 Tons Dynamic Heavy Loading Test, for the Steering, Hydraulic Lifting, Move Forward and Backward.
After Finished Loading Test, our Customers are very satisfied.

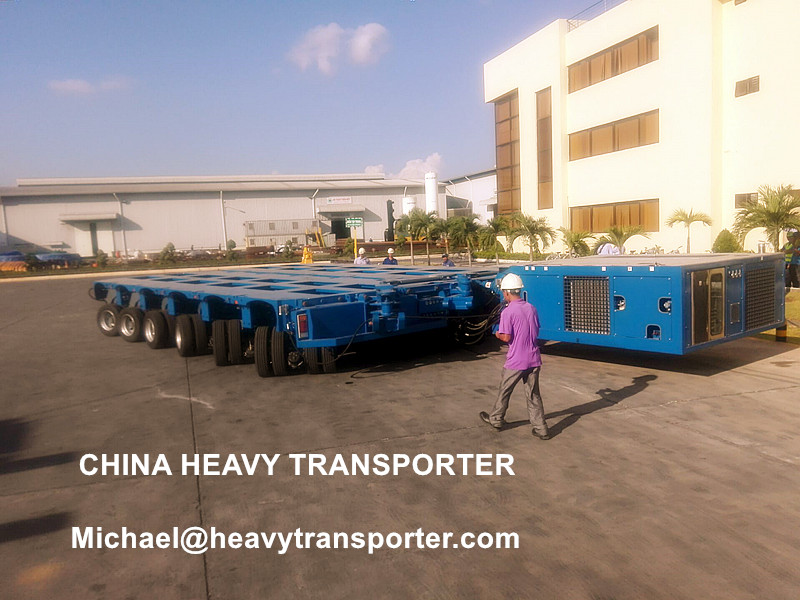

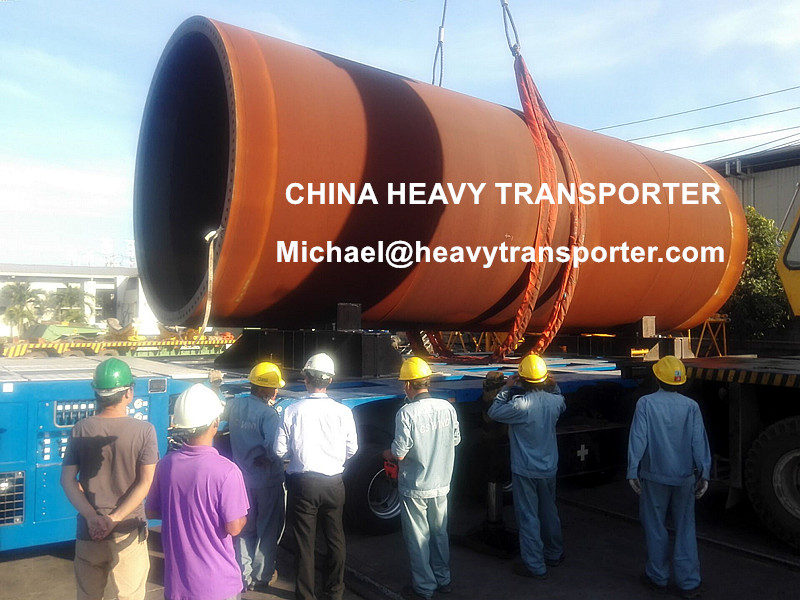

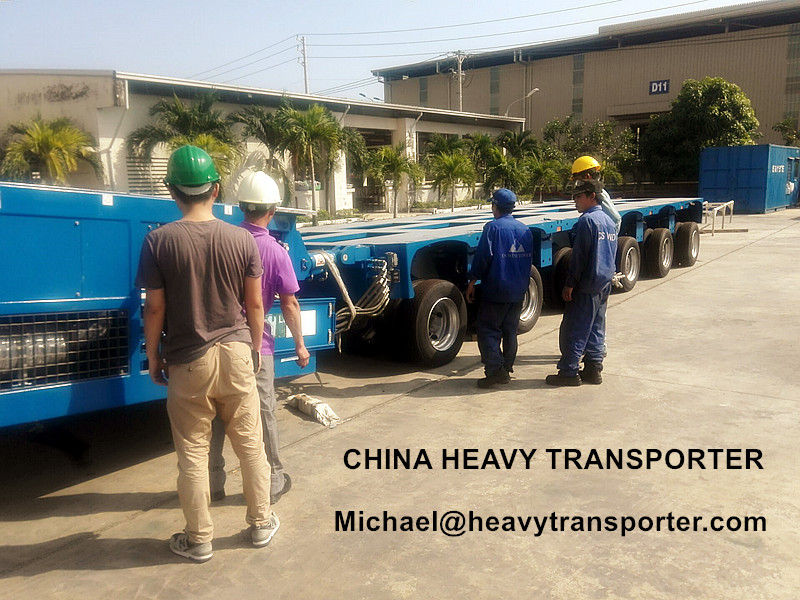

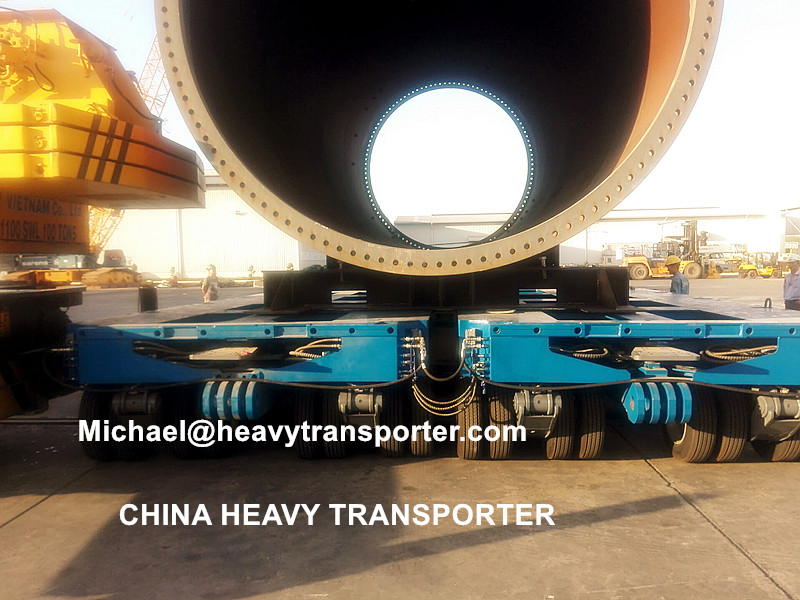

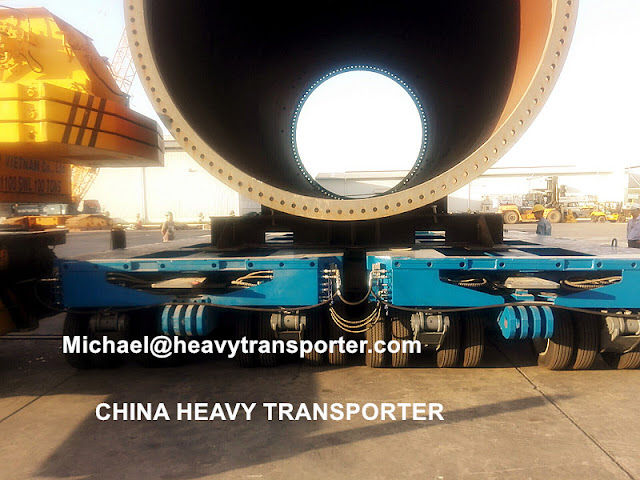

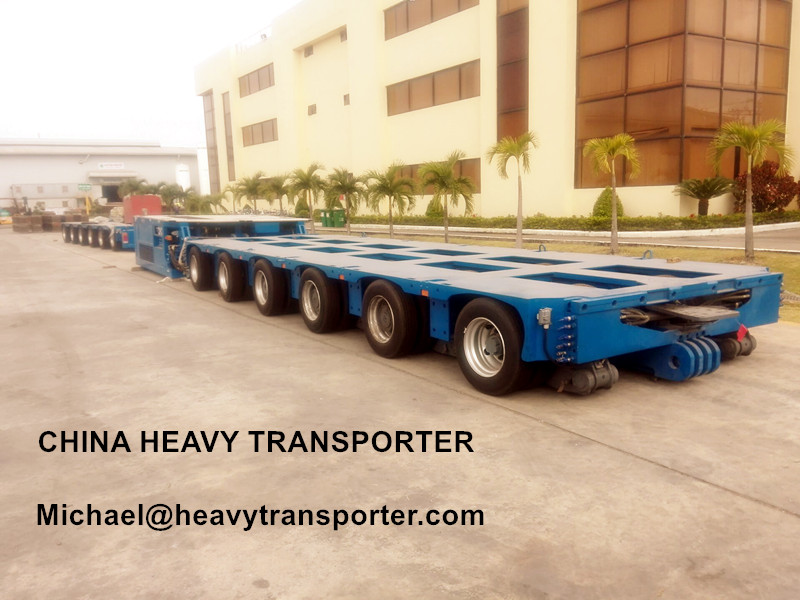

We will provide 7-10 Days Technical Training, Assembly, After Sales Service for Free in our Customer's site.
Meanwhile if need, our engineers also will be with you to transport cargo together.
No matter how long and heavy
the load or how complicated the job, we keep things moving.
We have our own Technical Team Engineers to develop & research to study the Modular Trailers. Our Technical Team have 33 Engineers with 10 Years rich experience.
Whatever you meet in your Project Transportation, we can provide technical support.
24 Hours Service on line.
