Semi Trailer is a particularly versatile and extensive semi-trailer series, which is based on 2 to 10 axles and is extendable up to 50m and more (telescopic central beam) with a high payload.--Heavytransporter.com
China Heavy Transporter semi-trailer is thus the economic and flexible solution to a multitude of different transport tasks. Whatever your projects cargo, we can manufacture as your need. It is customized. We are the leading manufacture of semi trailer, lowbed in China.--Heavytransporter.com
SUSPENSION AND STEERING--China Heavy Transporter-Heavytransporter.com
China Heavy Transporter can be equipped selectively with hydraulic or pneumatic suspension.--Heavytransporter.com
Various steering systems can be used:--China Heavy Transporter-Heavytransporter.com
Friction steered axles--China Heavy Transporter-Heavytransporter.com
Knuckle-steering (hydraulic) axles--Heavytransporter.com
Pendle axles--China Heavy Transporter-Heavytransporter.com
Independent wheel suspension (China Heavy Transporter-Heavytransporter.com)
EQUIPMENT & ACCESSORIES--Heavytransporter.com
China Heavy Transporter-Heavytransporter.com can be tailored individually to the transport requirements.--Heavytransporter.com
Here are just a few of the equipment options:--China Heavy Transporter-Heavytransporter.com
Different ramp systems-China Heavy Transporter-Heavytransporter.com
Hydraulically lift- and lowerable gooseneck--Heavytransporter.com
Hydraulically lift- and lowerable platform-China Heavy Transporter-Heavytransporter.com
Troughs (wheel troughs, excavator troughs)--Heavytransporter.com
Outriggers-China Heavy Transporter-Heavytransporter.com
Hydraulically extendable loading platform--China Heavy Transporter-Heavytransporter.com
...
AREAS OF USE--China Heavy Transporter-Heavytransporter.com
China Heavy Transporter-Heavytransporter.com is a particularly versatile and extensive low loader system and is suitable for the transport of:--Heavytransporter.com
Construction machines (excavation and road construction, recycling,...)
Forestry machines (harvester, skidder, forwarder,...)--Heavytransporter.com
Farming machines (tractors, combine harvesters,...)--Heavytransporter.com
Wind power plants (tower segments, generators, rotor or turbine blades)
Structural elements (steel and concrete elements)--Heavytransporter.com
Industrial parts (transformers, crane-loaded goods,...)--Heavytransporter.com
Lifting vehicles (lifting platforms, fork-lift trucks,...)--Heavytransporter.com
Crane systems (cranes, crane weights, crane components)--Heavytransporter.com
China Heavy Transporter-Heavytransporter.com
Conveying and crushing systems (demolition and recycling industry)--Heavytransporter.com
Track-guided vehicles (trams, locomotives, wagons)-Heavytransporter.com
Bulky goods, long materials and heavy loads-China Heavy Transporter-Heavytransporter.com
CHINA HEAVY TRANSPORTER: Modular Trailer, Self-Propelled Modular Transporter (SPMT), Lowbed, Lowboy, Flatbed Container Trailer, Windmill Transport, Blades/Nacelle/Tower Section Transport, Tank Transporter, Shipyard Transporter, Gooseneck, Spacer, Dropdeck, Girder Bridge, Heavy Lift & Transport vehicle.
CAPACITY:
20 – 60 Tons capacities
20 – 60 Tons capacities
CONTAINER SIZES:
- 1×40’
- 1×30’ centre
- 2×20’
- 1×40’
- 1×30’ centre
- 2×20’
CONTAINER LOCK:
4,8 or 12 locks
4,8 or 12 locks
CHASSIS AND STRUCTURE:
The chassis designed in accordance with the international transportation standards also available and prepared as having “I” section centre members are welded by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow to obtain the highest efficiency under all road and weather conditions.
The chassis designed in accordance with the international transportation standards also available and prepared as having “I” section centre members are welded by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow to obtain the highest efficiency under all road and weather conditions.
AXLES:
2-3 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.
2-3 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.
FRONT AXLE LIFTING:
Front shaft lifting system remote controlled from the driver’s seat.
Front shaft lifting system remote controlled from the driver’s seat.
BRAKE SYSTEM:
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.

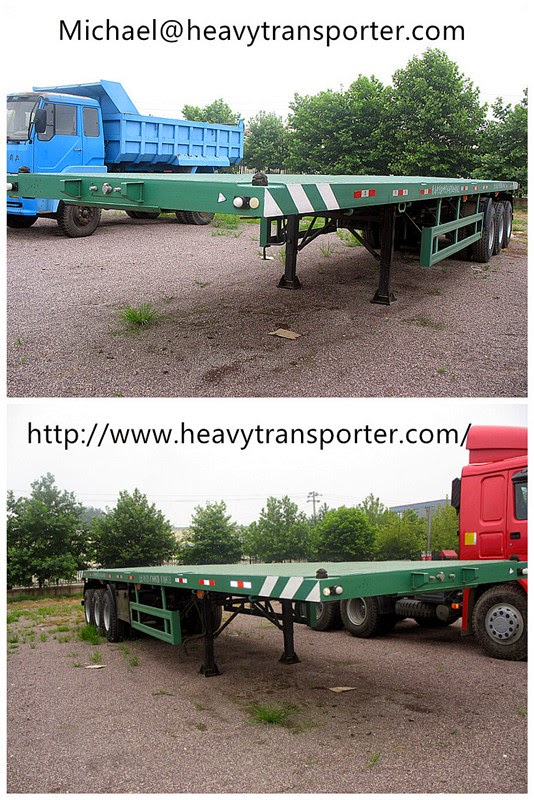

Container Trailer--CHINA HEAVY TRANSPORTER
The Quality Guarantee is one year after the trailres.
CHINA HEAVY TRANSPORTER
Container Semi Trailer
| |
|---|---|
| Capacity | 35500 Kg to 50Tons --Heavytransporter.com (Maximum laden weight)--Heavytransporter.com |
| Type |
3 Axle Container Semi Trailer (or Flatbed)
|
| Weight (Empty) | 3.500 Kg - 6.000 Kg--Heavytransporter.com |
| Axle Unit | 3 x 12 tons (Turkish brand) or 3 x 9 tons (German brand)-Heavytransporter.com |
| Tire Unit And Dimension | 6 Unit 385/65 R 22,5" or 12 Unit 12 R 22,5"--Heavytransporter.com |
| Chassis | Container Semitrailer has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage. Material quality standart is ST 52.--Heavytransporter.com |
| Extendable (Optionel) | For different dimension it depenson my costumer Extendable semitrailer is product.--Heavytransporter.comOther options: Self loading container, self load container. |
| Brake | Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, ABS or EBS, WABCO is brand--Heavytransporter.com |
| Front Cover and Locks | The front cover may not be desirable or optionally cover height of 1000 mm-1500 mm can be applied. Locks, the container to be moved is determined by the number and size.--Heavytransporter.com |
| Base | Skeleton type semitrailer, platform type and half platform type semitrailer varies according to demand. Trailer platform material--Heavytransporter.com 3/4 checkered plate or 30 mm is plywood (For foklift is support) |
| Accessories | All Tender (plastic), water tank, bump stop rubber. Plastic tool cabinet and eat box, manometre (suspension boot barometric pressure shall).--Heavytransporter.com |
Container Semi-Trailer Dimensions: | |
| Total Length | 7250 mm (20 Feet), 9500 mm (30 Feet),12200 mm (40 Feet or for 2x20 Feet) general--Heavytransporter.com is application.--Heavytransporter.com If extendable semitrailer varies according to demand.--Heavytransporter.com Extendable version: 13600 mm + 8000 mm (max) = 21600 mm |
| Width | 2480 mm - 3000 mm.--Heavytransporter.com |
| Electric Installation | The used Installation materials conform to the EEC 24 Certified European norms. |
| Lifting Foot | OMS brand 2x24 tones two cyclet lacklift system.--Heavytransporter.com |
| Paint | The desired color of Acrylic paint is used as top coat over two layered epoxy. |
| King Pin | 2"or 3,5"--Heavytransporter.com flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified. Heavytransporter.com China Heavy Transporter |
.jpg){kind=spacer}
For more information, please browse our website:
SERVICE
24-hour emergency service
Technical support by our engineering department
Training by our transport engineers in our training center or on-site
heavytransporter. com-Goldhfoer THP/SL
heavytransporter. com-Nicolas MDED

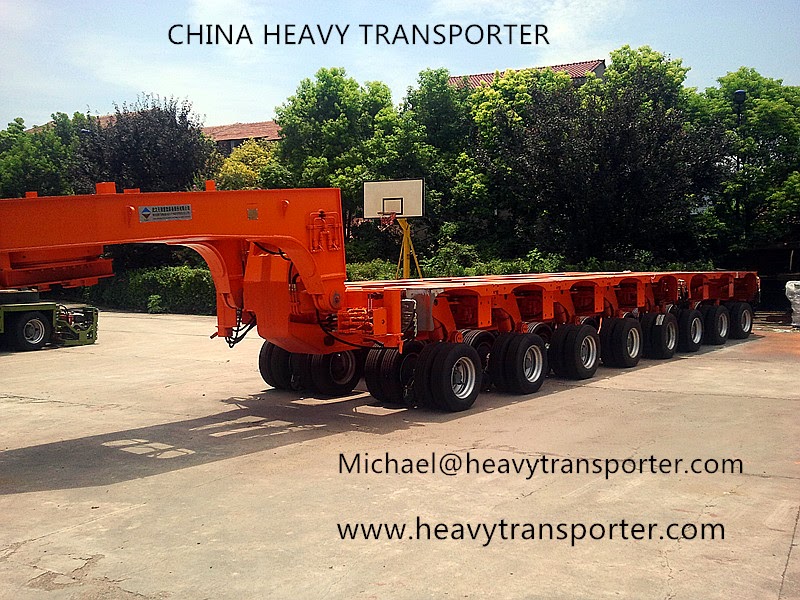

heavytransporter. com-Hydraulic Multi Axle
