Semi Trailer is a particularly versatile and extensive semi-trailer series, which is based on 2 to 10 axles and is extendable up to 50m and more (telescopic central beam) with a high payload.
China Heavy Transporter semi-trailer is thus the economic and flexible solution to a multitude of different transport tasks. Whatever your projects cargo, we can manufacture as your need. It is customized. We are the leading manufacture of semi trailer, lowbed in China.
SUSPENSION AND STEERING--China Heavy Transporter-Heavytransporter.com
China Heavy Transporter can be equipped selectively with hydraulic or pneumatic suspension.
Various steering systems can be used:--China Heavy Transporter-Heavytransporter.com
Friction steered axles--China Heavy Transporter-Heavytransporter.com
Knuckle-steering (hydraulic) axles--Heavytransporter.com
Pendle axles--China Heavy Transporter-Heavytransporter.com
Independent wheel suspension (China Heavy Transporter-Heavytransporter.com)
EQUIPMENT & ACCESSORIES--Heavytransporter.com
China Heavy Transporter-Heavytransporter.com can be tailored individually to the transport requirements.--Heavytransporter.com
Here are just a few of the equipment options:--China Heavy Transporter-Heavytransporter.com
Different ramp systems-China Heavy Transporter-Heavytransporter.com
Hydraulically lift- and lowerable gooseneck--Heavytransporter.com
Hydraulically lift- and lowerable platform-China Heavy Transporter-Heavytransporter.com
Troughs (wheel troughs, excavator troughs)--Heavytransporter.com
Outriggers-China Heavy Transporter-Heavytransporter.com
Hydraulically extendable loading platform--China Heavy Transporter-Heavytransporter.com
...
AREAS OF USE--China Heavy Transporter-Heavytransporter.com
China Heavy Transporter-Heavytransporter.com is a particularly versatile and extensive low loader system and is suitable for the transport of:--Heavytransporter.com
Construction machines (excavation and road construction, recycling,...)
Forestry machines (harvester, skidder, forwarder,...)--Heavytransporter.com
Farming machines (tractors, combine harvesters,...)--Heavytransporter.com
Wind power plants (tower segments, generators, rotor or turbine blades)
Structural elements (steel and concrete elements)--Heavytransporter.com
Industrial parts (transformers, crane-loaded goods,...)--Heavytransporter.com
Lifting vehicles (lifting platforms, fork-lift trucks,...)--Heavytransporter.com
Crane systems (cranes, crane weights, crane components)--Heavytransporter.com
China Heavy Transporter-Heavytransporter.com
Conveying and crushing systems (demolition and recycling industry)--Heavytransporter.com
Track-guided vehicles (trams, locomotives, wagons)-Heavytransporter.com
Bulky goods, long materials and heavy loads-China Heavy Transporter-Heavytransporter.com

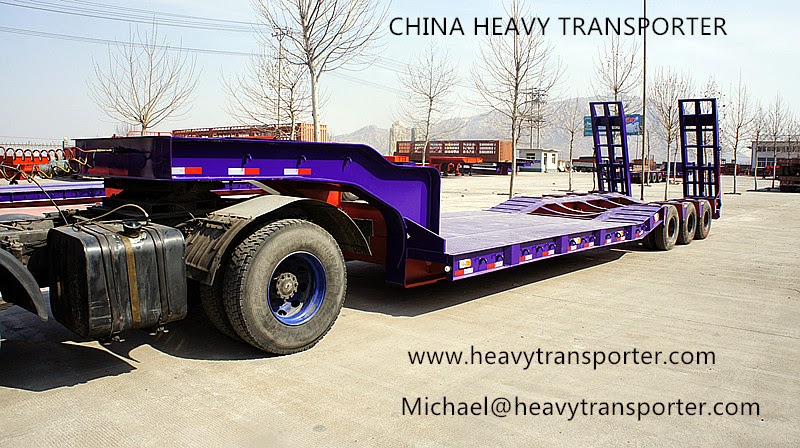

3 Axle Lowbed Semi Trailer
| |
|---|---|
| Capacity | 45.000 Kg (Max) (for air suspension) "Note: If you want group of 3 tandem system capacity it can to be 70.000 kg (max) for one machine |
| Type | (GLY3) 3 Axle Low-bed Semi Trailer
(Pool and Flat platform)
|
| Weight | 10500 Kg - 15000 Kg |
| Axle Unit | 3 Units |
| Tire Unit And Dimension | 12 units "235/75 R 17,5" or "295 /60 R 22,5" according to load capacity. |
| Chassis | Lowbed Semi-trailer has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage. |
| Axles | 3x12 tons or 3x14 tons capacity is air suspansion, axle is flat scissors from under, down and ups is lifting, amortisor is support. Brand is optionel. |
| Brake | Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, 4S 2M, ABS, WABCO is brand. |

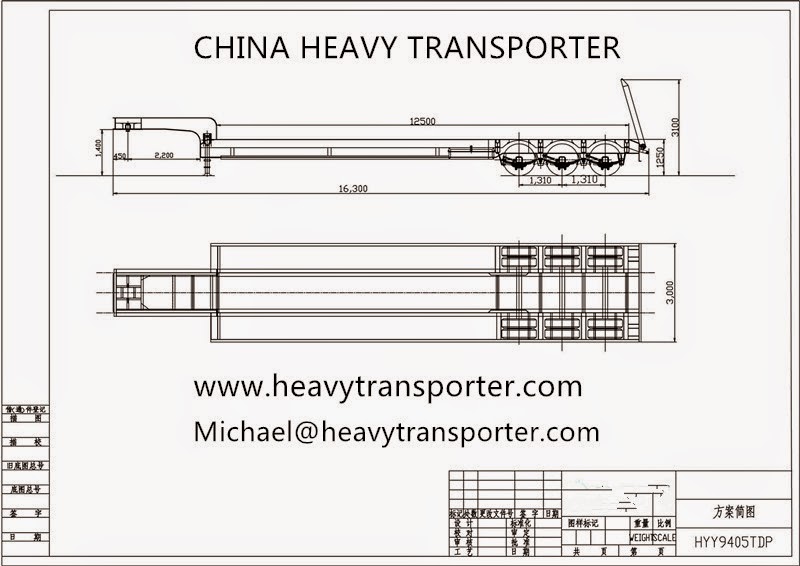

3 Axles Lowbed Semi-Trailer Dimensions: | |
| Platform Lenght | 8500 mm with 10500 mm it depends on customer varies depending on intended usage. (Option: Extension 4000 mm - 7000 mm) |
| Total Lenght | 12300 mm - 14300 mm. |
| Width | 2550 mm – 3300 mm varies according to demand. |
| Platform Height | Lowbed Semitrailer according transport generally 900 mm between 1050 mm. |
| Electric Installation | The used Installation materials conform to the EEC 24 Certified European norms. |

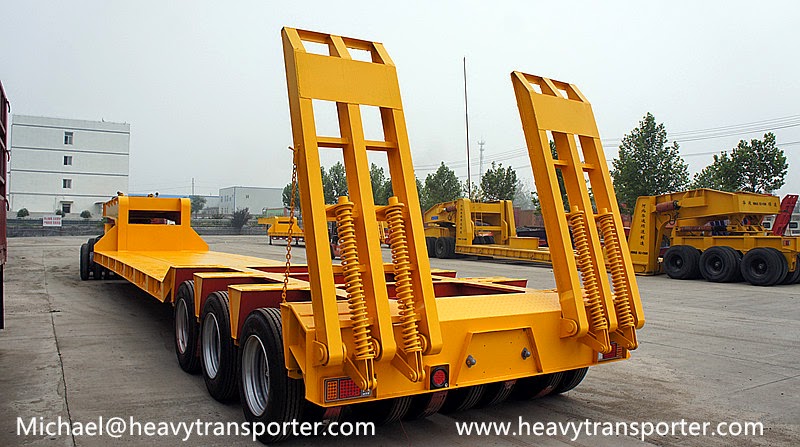

| Loading Ramps | Optionel, pneumatic or hydrualic system |
| Platform Materials | Top of the platform is ¾ diamond-embossed and sides are "KTM (Rubber Base Material)". What is KTM?. Click here for KTM... Over platform 8 mm is plain sheet for work machina bucket and from lower is support. |
| Paint | The desired color of Acrylic paint is used as top coat over two layered epoxy primer. |
| King Pin | 2"or 3,5" flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified .jpg){kind=spacer} .jpg){kind=spacer} .jpg){kind=spacer} .jpg){kind=spacer} .jpg){kind=spacer} .jpg){kind=spacer} .jpg){kind=spacer} |
