5 Rows/Axles Lowbed/Semi-Trailer-China Heavy Transporter-Heavytransporter.com

Semi Trailer is a particularly versatile and extensive semi-trailer series, which is based on 2 to 10 axles and is extendable up to 50m and more (telescopic central beam) with a high payload.

China Heavy Transporter semi-trailer is thus the economic and flexible solution to a multitude of different transport tasks. Whatever your projects cargo, we can manufacture as your need. It is customized. We are the leading manufacture of semi trailer, lowbed in China.

SUSPENSION AND STEERING--China Heavy Transporter-Heavytransporter.com

China Heavy Transporter can be equipped selectively with hydraulic or pneumatic suspension.

Various steering systems can be used:--China Heavy Transporter-Heavytransporter.com

Friction steered axles--China Heavy Transporter-Heavytransporter.com
Knuckle-steering (hydraulic) axles--Heavytransporter.com
Pendle axles--China Heavy Transporter-Heavytransporter.com
Independent wheel suspension (China Heavy Transporter-Heavytransporter.com)
EQUIPMENT & ACCESSORIES--Heavytransporter.com

China Heavy Transporter-Heavytransporter.com can be tailored individually to the transport requirements.--Heavytransporter.com

Here are just a few of the equipment options:--China Heavy Transporter-Heavytransporter.com

Different ramp systems-China Heavy Transporter-Heavytransporter.com
Hydraulically lift- and lowerable  gooseneck--Heavytransporter.com
Hydraulically lift- and lowerable platform-China Heavy Transporter-Heavytransporter.com
Troughs (wheel troughs, excavator troughs)--Heavytransporter.com
Outriggers-China Heavy Transporter-Heavytransporter.com
Hydraulically extendable loading platform--China Heavy Transporter-Heavytransporter.com
...
AREAS OF USE--China Heavy Transporter-Heavytransporter.com

China Heavy Transporter-Heavytransporter.com is a particularly versatile and extensive low loader system and is suitable for the transport of:--Heavytransporter.com

Construction machines (excavation and road construction, recycling,...)
Forestry machines (harvester, skidder, forwarder,...)--Heavytransporter.com
Farming machines (tractors, combine harvesters,...)--Heavytransporter.com
Wind power plants (tower segments, generators, rotor or turbine blades)
Structural elements (steel and concrete elements)--Heavytransporter.com
Industrial parts (transformers, crane-loaded goods,...)--Heavytransporter.com
Lifting vehicles (lifting platforms, fork-lift trucks,...)--Heavytransporter.com
Crane systems (cranes, crane weights, crane components)--Heavytransporter.com
China Heavy Transporter-Heavytransporter.com
Conveying and crushing systems (demolition and recycling industry)--Heavytransporter.com
Track-guided vehicles (trams, locomotives, wagons)-Heavytransporter.com
Bulky goods, long materials and heavy loads-China Heavy Transporter-Heavytransporter.com

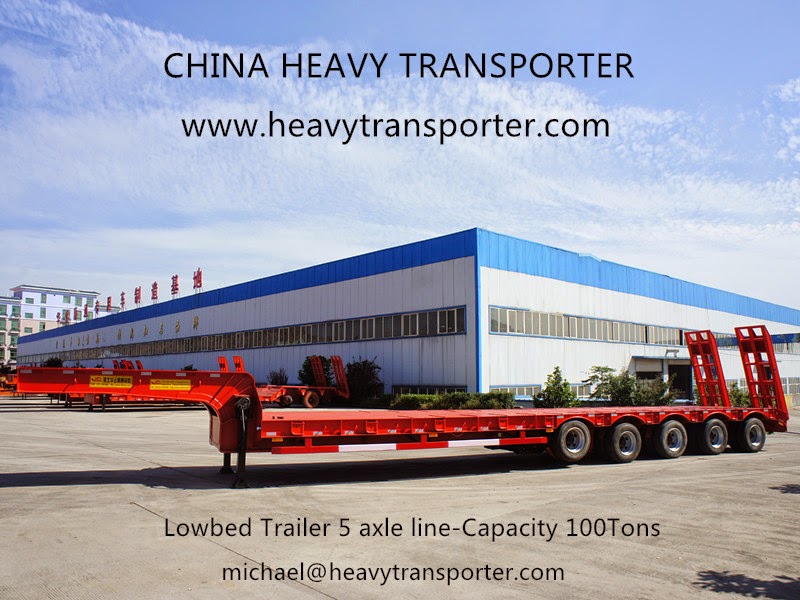

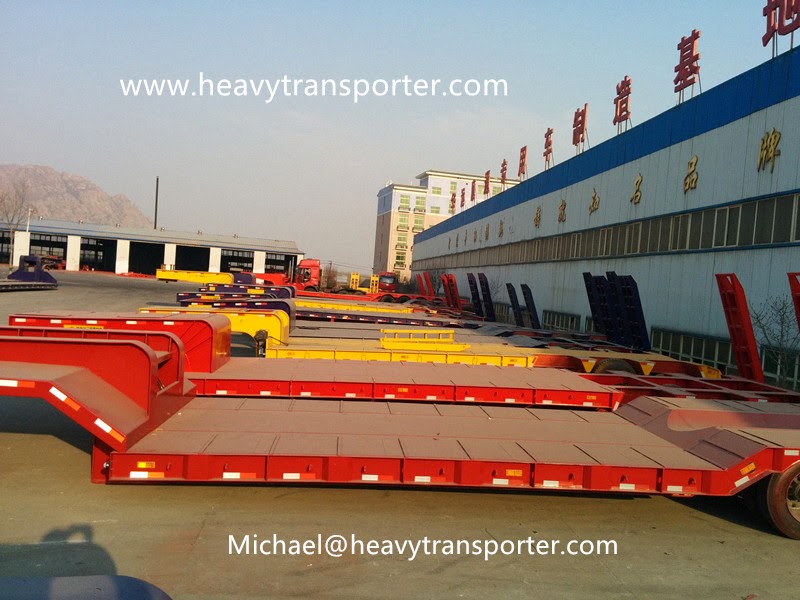

5 Axle Lowbed Semi-Trailer


Technical Properties:

Capacity65.000 Kg
Type

(GLY5)- 5 axles Lowbed Semi Trailer

(Pool or Flat platform)
(Option: Extendable semitrailer)

Weight13.250 Kg - 18.000 Kg
Axle Unit5 Units

(Options: self-rotary or hydraulic steering axles groups)

Tire Unit And DimensionIt is produce according to capacity or design. It is 20 units. 235/75 R 17,5", 295/60 R 22.5" or 12 R 22.5"
ChassisLowbed Semi Trailer has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage.
AxlesIt is according 17.5 rim and 5x12 tons, it is according 5x14 ton
capacity 22.5 rims
will be air suspension.

(Option: Hydraulic suspension. This option is taken with hydraulic steering axles)

BrakeBrakes system is used according to the standards EEC 97/12, double-circuit pneumatic, 4S 2M, ABS, WABCO is brand.

5 Axles Lowbed Semi Trailer Dimensions:

Platform Lenght9500 mm - 12500 mm.
Varies depending on intended usage.

(Option: Extension 5000 mm - 9000 mm)

Total Lenght13500 mm - 17000 mm varies according to demand
WidthAs air suspension 2500 mm with 3300 mm varies according to demand.
Platform HeightVaries according to demand, Pool height 500 mm with 1000 mm, Platform type height 920 mm is between 1050 mm (Max)
Electric InstallationThe used Installation materials conform to the EEC 24 Certified European norms.
Loading RampsStandart
pneumatic or hydraulic system with is optionel, pneumatic ramp NPI 220 base material.
To produce very
strong
ramps are like as alway, 1 year or 2 years later, it isnt necessary. So you can lets work, Hydraulic ramps will be make
2500 mm + 1500 mm = 4000mm , Ramp specially designed is strong. "Gürleşenyıl Treyler" quality with Trust
Platform MaterialsLowbed Semitrailer Top of the platform is ¾ diamond-embossed
and sides are "KTM (Rubber Base Material)". What is KTM? Click here...
Over platform 8 mm is plain sheet for work machina bucket and from lower is support.
PaintThe desired color of Acrylic paint is used as top coat over two layered epoxy primer.
King Pin2"or 3,5"
flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified







SERVICE
24-hour emergency service
Technical support by our engineering department
Training by our transport engineers in our training center or on-site
